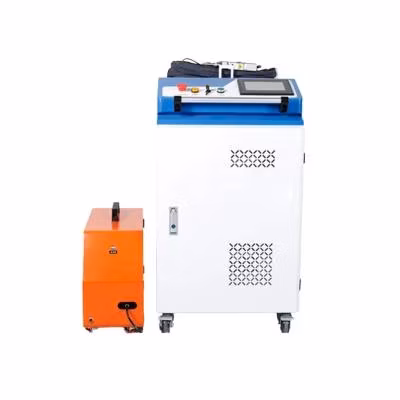

Mini Laser Welder 1000W Hand Held Portable Fiber Laser Welding Cutting Cleaning Machine 4 in 1 for Stainless Steel
HomeHome > Products > Laser Cleaning Machine > Mini Laser Welder 1000W Hand Held Portable Fiber Laser Welding Cutting Cleaning Machine 4 in 1 for Stainless Steel
Mini Laser Welder 1000W Hand Held Portable Fiber Laser Welding Cutting Cleaning Machine 4 in 1 for Stainless Steel

Mini Laser Welder 1000W Hand Held Portable Fiber Laser Welding Cutting Cleaning Machine 4 in 1 for Stainless Steel

Overview Package Size 700.00cm * 1300.00cm * 1500.00cm Package Gross Weight 240.000kg Product Description One laser mach
Overview
Basic Info.
Model NO. CCW-Series
Technical Class Continuous Wave Laser
Control Automatic
Power Density Deep Fusion Welding
Laser Classification Customized
Type Fiber Laser
Weld Thickness 2-2.5mm/2-2.5mm/3-4mm/5-6mm
Power Consumption 7kw / 8.2kw / 9.8kw / 13.9kw
out Power Stability <2%
Machine Size 700*1500*1300mm / 1500*750*850mm
Machine Weight 240kgs / 160kgs
Model Regular / Mini
Cleaning Width 10-200mm
Laser Type Continuous
Laser Source Fiber Laser
Laser Wavelength 1080±5nm
Pulse Width 0.05-0.6
Machine Power 1000W / 1500W / 2000W / 3000W
Transport Package 3 Layers
Specification more than 4500kg
Trademark DXTECH
Origin Jinan, Shandong Prvovince, China
HS Code 8461500090
Production Capacity 100 Sets/Month
Packaging & Delivery
Package Size 700.00cm * 1300.00cm * 1500.00cm Package Gross Weight 240.000kg
Product Description
Product Description

One laser machine can do laser welding, laser cleaning and handheld metal cutting together. No need to buy several laser machines for these different laser process jobs. Our laser system is very suitable for stainless steel & aluminum alloy welding, also can do welding on carbon steel, titanium alloy and etc. Also it can be used for rusty removal and handheld metal cutting.

Mini Laser Welder 1000W Hand Held Portable Fiber Laser Welding Cutting Cleaning Machine 4 in 1 for Stainless Steel


Features
1. Multifunction fiber laser machine, can weld, clean and cut metallic materials;2. Handheld type with longer holder cable length;3. Welding function conversion cleaning function, just replace the focusing lens and laser head;4. Small machine body, can move easily. It is very convenient.

Mini Laser Welder 1000W Hand Held Portable Fiber Laser Welding Cutting Cleaning Machine 4 in 1 for Stainless Steel

Technical Parameters
Machine power1000w / 1500w / 2000w / 3000w
laser typecontinuous
Laser sourceFiber laser
Cleaning width10-200mm
Laser wavelength1080±5nm
Pulse Width0.05-0.6
Out power Stability<2%
Weld thickness2-2.5mm/2-2.5mm/3-4mm/5-6mm
Power Consumption7KW / 8.2KW / 9.8KW / 13.9KW
Fiber optical length10m
ModelRegular / mini
Machine size700*1500*1300mm / 1500*750*850mm
machine weight240KGS / 160KGS
Detailed Photos
Laser head--The portable welding joint is light,flexible and easy to operate.it can be used for continuous welding of various angles and positions.Control Panel--The operation is simple and clear,and the system supportsmultiple languages. Laser Source--Compared with similar products,the light laser has a higher photoelectric performance conversion ability ,a more stable beam,and a stronger anti-reflection ability. Cutting Sample

Mini Laser Welder 1000W Hand Held Portable Fiber Laser Welding Cutting Cleaning Machine 4 in 1 for Stainless Steel

Mini Laser Welder 1000W Hand Held Portable Fiber Laser Welding Cutting Cleaning Machine 4 in 1 for Stainless Steel

Mini Laser Welder 1000W Hand Held Portable Fiber Laser Welding Cutting Cleaning Machine 4 in 1 for Stainless Steel



Certifications

FAQ1. Do you have the CE document and other documents for customs clearance?
A: Yes, we have the Original. At first, we will show you and after shipment, we will give you CE/Packing list/CommercialInvoice/Sales contract for customs clearance.
2. Payment terms?
A: Alibaba trade assurance/TT/West Union/Paypal/LC/Cash and so on.3. What's the max. cutting thickness?
A: Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass, and other high-reflection sheet metal.4. Which kind of materials can be processed on this machine?
A: Wood, MDF, stone, acrylic, glass, plastic, foam, aluminum, copper, and almost all kinds of non-steel materials.5. How long is the delivery time?
A: For standard machines, it will be 7-10 days; For non-standard machines and customized machines according to the client's specific requirements, it will be 15 to 30 days.
