6kw /8kw /10kw /12kw Ipg /Raycus Power Max Fiber Laser Cutter Equipments CNC Metal Fiber Laser Cutting Machine for Agriculture Machinery Aerospace Industry

Basic Info.

Model NO.	GT PRO
Cooling System	Water Cooling
Technical Class	Continuous Wave Laser
Applicable Material	Metal
Structure Type	Fiber Laser
Laser Classification	Raycus/Ipg
Laser Technology	Laser Control Fault Cutting
CNC Fiber Laser Cutting Machine Metal	Steel Sheet Metal Plate Cutting
CNC Laser Cutting Machine	Wholesale/Agent/Factory Price for Sale
Laser Cutter Processing Material	Carbon Steel; Stainless Steel; Aluminium; Copper
Product	Laser Cutting Machine Factory
Transport Package	Standard
Specification	/
Trademark	HSG
Origin	China
Production Capacity	1500PCS/Year

Packaging & Delivery

Package Size 300.00cm * 150.00cm * 100.00cm Package Gross Weight 300.000kg

Product Description

6kw 8kw 10kw 12kw Ipg Raycus Max Fiber Laser Cutter CNC Metal Fiber Laser Cutting Machine for Agriculture Machinery Aerospace Industry

MODEL FEATURES(Sheet Metal Laser Cutting Machine)

GT Series Laser Cutting Machine ALPHAT CNC Control System

Product Parameters

Model	G4020T PRO	G6025T PRO	G8025T PRO	G12025T PRO
Power	12000-15000W	12000-15000W	12000-15000W	12000-15000W
Working Area (L*W)	4000*2000mm	6000*2500mm	8000*2500mm	12000*2500mm
X/Y-axis Positioning Accuracy	±0.03mm/m	±0.03mm/m	±0.03mm/m	±0.03mm/m
X/Y-axis Repositioning Accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm
No-load Speed	140m/min	120m/min	120m/min	120m/min
Acceleration	1.5G	1.5G	1.5G	1.5G
Loading Weight of Platforms	2000kg	3500kg	4680kg	7020kg
Overall Dimensions (L*W*H)	11400*3600*2370mm	15900*4150*2370mm	20100*4150*2370mm	30000*4140*2400mm

* Machine appearance, technical parameters, function description, data comparison shown in this page/video/picture are from HSG in-house laboratory. All testing results and experimental data shall be subject to real machine. * High power refers to 12000W and above.

Detailed Photos

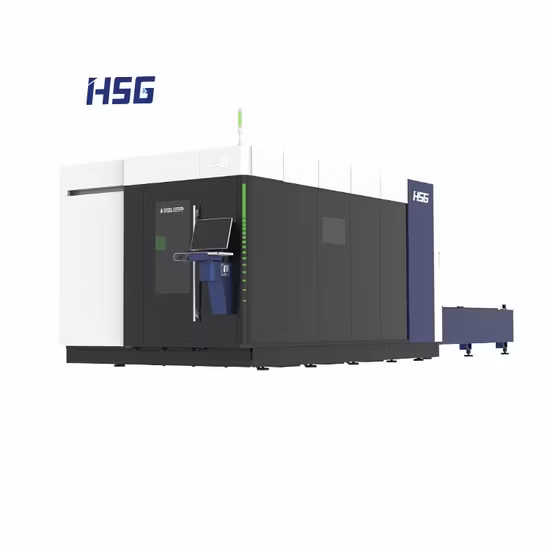

Intelligentized full protective laser cutting machine 12000-15000W
* alpha T CNC system* eco-friendly cutting by zoning ventilation* dual-motor driven exchange platforms(6000*2500mm or above formats) * conform to EN ISO12100,EN6204-1,EN ISO11553

Machine Characters
Hollow plate welded heat dissipation bed. The special bed for laser cutting machines is made of high-strength steel. The cutting area is hollow to prevent the machine from overheating and deforming. Provide a strong guarantee for customers to realize long-term batch cutting of plates.
Protection cover. The front and back of the protective cover are equipped with built-in cameras and use the intelligent central control system to monitor the operation. protective glass observation window, sheet metal protective cover, safe production.
autofocus laser head: the monitoring data can be read on the mobile terminal or CNC system, autofocus according cutting of different materials, and thickness of plates.
The operation is simple and easy to use: control system specifically for laser cutting machines. Comprehensive diagnosis functions to find faults quickly. The corresponding process database can be set according to different materials and thicknesses, automatic nesting function. Support contour inspection and complex graphics repair functions. Automatically optimize the cutting path.
fiber laser: Use stable and reliable power laser

P10 High-power Intelligent Bus Cutting Head(High power refers to 12000W and above. )
It can change its laser spot to proper size and shape according to cutting materials and thickness.

The Latest Generation of Extruded Aviation Aluminum Beam

Conform to EU's Three Safety Design Norms and CE Certification

Alpha T Bus CNC System

Alpha T, self-developed by HSG LASER, can make data transmission rapid, stable and accurate only via a network cable as a technically advanced bus system.
Optional Features: Lantek nesting software

Eco-friendly Cutting

With zoning ventilation, butterfly valve and 300*300mm full-hollow air ducts, the much better ventilation and almost smoke-free effects will come true.
Optional Features:
Top cover+ positive-pressure blower fans: create full-protective structure to discharge cutting smoke efficiently
Laser-proof glass: protect workers' retina well

Exchange Platforms

The double exchange platforms are driven by double motors (for 6000*2500mm or larger processing formats) stably at speed , which will work independently with no effect on each other. Taper pins are used for positioning the platforms to keep positioning precision within 0.5mm.
Optional Features:
Pneumatic door between exchange platforms: prevent cutting smoke diffusion and keep working environment clean
Safety light curtain: halt the machine instantly while detecting any intruder to protect machine and workersCarbon Steel Welded Machine BedKeep high precision and stability for 20+ years due to 500MPa tensile strength and welding stress elimination by lonnealing and vibration aging;Covered with military-level anti-burning manganese steel plate

Integrated Electric Cabinet

The electric cabinet is integrated with machine body to cover small area, wherein, its standard wiring and fully-sealed structure can prevent dust entry and any possible ignition.

6kw 8kw 10kw 12kw Ipg Raycus Max Fiber Laser Cutter Full Cover High Power CNC Metal Fiber Laser Cutting Machine for Agriculture Machinery Aerospace Industry

Sample Cutting Display

Certifications

6kw 8kw 10kw 12kw Ipg Raycus Max Fiber Laser Cutter Full Cover High Power CNC Metal Fiber Laser Cutting Machine for Agriculture Machinery Aerospace Industry

Packaging & Shipping

After Sales Service

HSG Customer Service Policy

The HSG customer service team is currently equipped with more than 200 professional employees, including pre-sale services, in-sale services, after-sales service, customer training and other professional teams, from technical process consulting, visits and sample inspection, customer site inspection planning and installation debugging , customer personnel training, equipment maintenance and repair, etc., provide 7*24 hours a full range of rapid response services.

• Putting The Customer First

• 30 Minutes Quick Response

• 24/7 Online Service6kw 8kw 10kw 12kw Ipg Raycus Max Fiber Laser Cutter High Power CNC Metal Fiber Laser Cutting Machine for Agriculture Machinery Aerospace Industry(High power refers to 12000W and above.)
